How We Used Elixir's GenServers + Dynamic Supervisors to Build Concurrent, Fault Tolerant Workflows

"Concurrent" and "fault tolerant" are Elixir buzzwords that I heard again and again without actually seeing these features in action. Even after writing a fair amount of Elixir code, I still hadn't had an opportunity to meaningfully use them. So how can we leverage native Elixir features to build programs that are concurrent and fault tolerant? What do we win by doing so?

In this post, we'll walk through how to use GenServers and Dynamic Supervisors to build fast, concurrent workflows that are (you guessed it!) fault tolerant.

The Problem

At the Flatiron School (you may have heard), we write a lot of curriculum content. That content lives in GitHub repos. In order to "deploy" that content to a class of students, we take the repos under a given GitHub organization that represents the course and copy them into a new organization that represents the class of students.

Something like:

  • Give me all the repos under the "fullstack-web-immersive-curriculum" organization.
  • Copy them into repos under the "fullstack-web-immersive-fall-2020" organization.

Taking all of the repos that represent a given course and copying them over into a student organization can mean a lot of GitHub API calls and Git interactions. Consequently, we're left with a program that is not only slowed down by a lengthy series of web requests, but made vulnerable to errors by the presence of so much code that relies on an external source (the GitHub API). Add to that the difficulty of tracking the success/failure of each individual "student repo deployment" and you're left with writing a lot of tricky and problematic code.

Elixir To The Rescue

To solve our speed issue, we wanted something that would provide concurrency. To ensure that an error creating one student repo would be properly handled and not prevent the rest of the student repos from being created, we wanted something fault tolerant. Lastly, we wanted a tool that makes it easy to track the progress, success and failure of a given student repo and report on the overall state of the course's deployment to a class.

Elixir absolutely fit the bill. By leveraging Dynamic Supervisors and GenServers we can concurrently "deploy" lots and lots of repos, gracefully handle any errors that might occur for a given repo deployment and track each individual deployment process to be reported on later.

Keep reading to see exactly how we did it!

GenServer Architecture

To build out our course deployment feature, we'll need the following constructs:

  • CourseState: A GenServer that is responsible for tracking the progress of a given course's deployment to a class of student. It knows how many student repos are processing, which have completed successfully and which have failed.
  • CourseWorker: A GenServer that orchestrates the deployment of a course. It knows what steps are involved in the course deployment and when to kick off those steps. CourseWorker is in charge of spinning up the concurrent student repo workers.
  • StudentRepoWorker: A GenServer that knows what steps are involved in the creation of an individual student repo and when to kick off those steps.
  • CourseSupervisor: A Supervisor that will spin up the CourseState and CourseWorker servers in order to enact a course deployment.
  • StudentRepoSupervisor: A Supervisor that will spin up StudentRepoWorker servers in order to enact the student repo creation process.

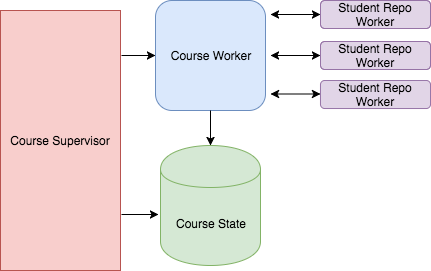

The relationship between these entities looks something like this:

The CourseWorker server tells the StudenRepoWorkers what to do and when to do it. And it passes messages back to the CourseState server at each step of the process.

Now that we have high-level overview of what we're building, let's dive in.

Building the GenServer Infrastructure

We'll start by defining the CourseState and CourseWorker GenServers. Then we'll build a supervisor that knows how to start them up.

The CourseState Server

This GenServer is pretty simple. It's not responsible for running any deployment-related code. It just holds the state of the course deployment. It should have awareness of:

  • Which student repos are in the process of being created
  • Which student repos have successfully been created
  • Which student repos have failed
defmodule CourseState do
  use GenServer

  def start_link(_args) do
    GenServer.start_link(__MODULE__, [])
  end

  def init(args) do
    {:ok,
      %{
        processing: [],
        success: [],
        failure: [],
        done: false
      }
    }
  end

Our server initializes without any arguments and it sets up an initial state that establishes awareness of the processing, successful and failed student repos. It also has awareness of whether or not the entire course deployment is done. We'll use this piece of info later on.

The CourseWorker Server

This server is in charge of kicking off the individual student repo deployments and reporting on the progress of that work to the state server.

As such, it will initialize with some arguments:

  • The params it needs to query for canonical repos to deploy to students.
  • The PID of the CourseState server so that it can send messages to that server.
defmodule CourseWorker do
  use GenServer

  def start_link([state_server_pid, course_params]) do
    GenServer.start_link(__MODULE__, [state_server_pid, course_params])
  end

  def init(args) do
    send(self(), :deploy_course)
    {:ok, }
  end

  def handle_info(:deploy_course, state) do
    # coming soon!
    {:noreply, state}
  end
end

Our CourseWorker server starts up by doing two things:

  1. Storing the state server PID and course params in its own internal state.
  2. Kicking off the course deployment code flow (coming soon!)

Now that our first two GenServers have been born, let's build a supervisor to start them up.

The CourseSupervisor

We Need a Dynamic Supervisor

Its important to understand that we don't want our GenServers to start running when the application starts. We want our supervisor to spin up these GenServers for each "deploy a course" request that our app receives. So we need to start our supervisor when the app starts, without starting the supervisor's children (the GenServers).

Luckily for us, Elixir allows us to do just that with Dynamic Supervisors!

A DynamicSupervisor starts with no children. Instead, children are started on demand via start_child/2.

In the following section we will:

  • Define our very own Dynamic Supervisor.
  • Tell our app to start this supervisor when the app starts.
  • Teach our supervisor how and when to start its children.

Defining the Dynamic Supervisor

Our Dynamic Supervisor should know how to start both of its children with the arguments that they need.

defmodule CourseSupervisor do
  use DynamicSupervisor

  def start_link(_arg) do
    DynamicSupervisor.start_link(__MODULE__, :ok, name: __MODULE__)
  end

  def start_work(course_params) do
    {:ok, state_pid}  = supervise_state_server
    supervise_worker_server(state_pid, course_params)
    {:ok, state_pid}
  end

  def init(:ok) do
    DynamicSupervisor.init(strategy: :one_for_one)
  end

  defp supervise_state_server do
    spec = %{id: CourseState, start: {DeployState, :start_link, []}}
    DynamicSupervisor.start_child(__MODULE__, spec)
  end

  defp supervise_worker_server(state_pid, course_params) do
    spec = %{id: CourseWorker, start: {CourseWorker, :start_link, [state_pid, course_params]}}
    DynamicSupervisor.start_child(__MODULE__, spec)
  end
end

We also need to update our CourseWorker GenServer by specifying a :temporary restart strategy, so that it will not by restarted by the DynamicSupervisor in the event of a crash.

defmodule CourseWorker do
  use GenServer, restart: :temporary
end

Our supervisor implements a public-facing function, start_work/1 that will take in the given course params and start the two child GenServers.

Let's take a closer look at the manner in which it starts up its children.

We tell the CourseWorker not to restart in the event of a crash by specifying a restart: temporary scheme. If the course deployment processes crashes, we can let it crash. We've stored the state of the course deployment in a different GenServer entirely, the CourseState server. This server will still be up and running in the event of such a crash. It can report on the status of the course deployment to the client, who can decide if and how to try again.

Further, the CourseWorker GenServer is not meant to be a long-running process. The supervisor starts up one such process for each course deployment. Once a course is successfully deployed to a class of students, we will terminate the GenServer process. We don't want our supervisor to continue to restart such processes.

The state server, on the other hand, should be restarted if it crashes, so we do not specify a :temporary restart value.

Now that our supervisor knows how to start its children, let's teach the app to start our supervisor.

Starting the Dynamic Supervisor

We want our dynamic supervisor to start up when the app starts, so we'll add the following to our application.ex file:

# application.ex

...
def start(_type, _args) do
  import Supervisor.Spec
  children = [
    supervisor(Curriculum.Repo, []),
    %{
      id: Curriculum.CourseSupervisor,
      start: {Curriculum.CourseSupervisor, :start_link, [[]]}
    }
  ]
  opts = [strategy: :one_for_one, name: Curriculum.Supervisor]
  Supervisor.start_link(children, opts)
end

Starting the GenServers

Now that our supervisor is up and running, we can tell it to execute a course deployment by starting its children like this:

CourseSupervisor.start_children(course_params)

Our app can call on this code whenever it receives a request to deploy a course to a class of students.

Executing a Course Deployment

Now that our GenServers know how to get up and running, let's take a close look at what they actually do.

Deploying a course involves two steps:

  1. Query for all of the "canonical" repos that need to be made into student repos
  2. Spin up a concurrent process to create each student repo.

We want to maintain separation of concerns. So, we don't want the CourseWorker GenServer to know how to perform each of these steps. It will simply tell a helper module, CourseDeployer what to do. And, at each step of the process it will update the state server with the necessary info.

First, CourseWorker will tell CourseDeployer to query for the repos and start up the student repo creation process. It will pass CourseDeployer its own PID so that CourseDeployer can send messages back to this worker GenServer, which will in turn tell the CourseState server to make any necessary changes to state.

# course_worker.ex

def handle_info(:deploy_course, state) do
  state[:course_params]
  |> CourseDeployer.deploy_student_repos(worker_pid)
  {:noreply, state}
end

This separation of concerns has an added benefit: If the code invoked by CourseDeployer raises a Run Time error, it will cause the CourseWorker that called on it to crash in in a way that we can listen for and handle appropriately. More on that later.

Let's take a closer look at the CourseDeployer.deploy_student_repos/1 function. this function runs the query for canonical repos to deploy, iterates over the results and tells the StudentRepoSupervisor to start a child process for reach student repo to create.

For each student repo deploy process it kicks off, CourseDeployer then sends a message back to the CourseWorker with the PID of that process.

# course_deployer.ex
defmodule CourseDeployer do

  def deploy_student_repos(course_params, worker_pid) do
    CourseDeployments.repos_for_course(course_params)
      |> Enum.map(&deploy_student_repo(&1, worker_pid))
      |> Enum.map(&update_processing_state(&1, worker_pid))
  end

  def deploy_student_repo(canonical_repo, worker_pid) do
    {:ok, pid} = StudentRepoSupervisor.start_work(canonical_repo, worker_pid)
    pid
  end

  def update_processing_state(student_repo_pid, worker_pid) do
    CourseWorker.update_processing_state(student_repo_pid, worker_pid)
  end
end

CourseWorker will pass this message along to the state server which will update the :processing key in state to point to an list that includes the new student repo worker PID.

# course_worker.ex

def update_processing_state(student_repo_pid, worker_pid) do
  GenServer.cast(worker_pid, {:update_processing_state, student_repo_pid})
end

def handle_cast({:update_processing_state, student_repo_pid}, state) do
  state[:state_server_pid]
  |> CourseState.update_processing(student_repo_pid)
  {:noreply, state}
end

The CourseState server receives the update_processing message and responds by updating its internal state.

# course_state.ex

def update_processing(state_server_pid, student_repo_pid) do
  GenServer.cast(state_server_pid, {:update_processing, student_repo_pid})
end

def handle_cast({:update_processing, student_repo_pid}, state) do
  processing = state[:processing]
  state      = Map.put(state, :processing, [student_repo_pid | processing])
  {:noreply, state}
end

Now that we've kicked off the course deployment process, we can see the pattern of communication that is starting to emerge:

  • A supervisor starts its child servers.
  • A "worker" server tells a module to do some work.
  • The module doing the work sends messages back to the worker server.
  • The "worker" server tells its sibling "state" server to make changes to state.

Now let's switch gears and take a look at the concurrent work that our StateRepoSupervisor kicks off for us.

Building Concurrency

The StudentRepoSupervisor

If we want to dynamically start a GenServer process responsible for creating each individual student repo, we need a dynamic supervisor.

We'll define a supervisor, StudentRepoSupervisor:

# student_repo_supervisor.ex

defmodule StudentRepoSupervisor do
  use DynamicSupervisor
  def start_link(_arg) do
    DynamicSupervisor.start_link(__MODULE__, :ok, name: __MODULE__)
  end

  def init(:ok) do
    DynamicSupervisor.init(strategy: :one_for_one)
  end

  def start_work(canonical_repo, course_worker_pid) do
    spec = %{id: StudentRepoWorker, start: {StudentRepoWorker, :start_link, [[canonical_repo, course_worker_pid]]}, restart: :temporary}
    DynamicSupervisor.start_child(__MODULE__, spec)
  end
end

This supervisor has one child: StudentRepoWorker. This will be a GenServer responsible for the "create a student" repo work. Notice that this child has a :temporary restart strategy. Once again, if the individual worker process crashes, we don't want to restart it. We are maintaining out state server separately. A worker process crash won't kill our state server, and we can retrieve our state from that server and act on it in the event of such a crash.

Further, the StudentRepoWorker GenServer is not meant to be a long-running process. The supervisor starts up one such process for each student repo deployment. Once a student repo creation is finished running, we will terminate the GenServer process. We don't want our supervisor to continue to restart such processes.

Let's make sure our new dynamic supervisor is started with the app starts:

# application.ex

...
def start(_type, _args) do
  import Supervisor.Spec
  children = [
    supervisor(Curriculum.Repo, []),
    %{
      id: CourseSupervisor,
      start: {CourseSupervisor, :start_link, [[]]}
    },
    %{
      id: StudentRepoSupervisor,
      start: {StudentRepoSupervisor, :start_link, [[]]}
    }
  ]
  opts = [strategy: :one_for_one, name: Curriculum.Supervisor]
  Supervisor.start_link(children, opts)
end

Now we're ready to take a closer look at this supervisor's child, the StudentRepoWorker GenServer.

The StudentRepoWorker Server

This worker is responsible for enacting the "create a student repo" process.

It will tell another helper module, StudentRepoDeployer to make the student repo in GitHub.

If this process succeeds, it will pass a message back to the CourseWorker, which will tell the CourseState server to update state.

If the process fails, it will pass a message back to the CourseWorker, which will tell the CourseState server to update state.

Executing Student Repo Deployment

When our GenServer starts, it receives an arguments of the canonical repo (which will be used to create a student repo), along with the PID of the course worker server. It will use this PID to send messages back to that server. It stores both of these things in its own internal state for later use.

defmodule StudentRepoWorker
  use GenServer

  def start_link([canonical_repo, course_worker_pid]) do
    GenServer.start_link(__MODULE__, [canonical_repo, course_worker_pid])
  end

  def init([canonical_repo, course_worker_pid]) do
    send(self(), :deploy_student_repo)
    {:ok,
      %{
        canonical_repo: canonical_repo, course_worker_pid: course_worker_pid
      }
    }
  end

  def handle_info(:deploy_student_repo, state) do
    StudentRepoDeployer.deploy_student_repo(state[:canonical_repo, self()])
    {:noreply, state}
  end
end

When the GenServer starts, it sends the :deploy_student_repo message. Our server responds to that message by calling on the StudentRepoDeployer helper module. This is the module that knows how to create student repos. Our server passes its own PID to the helper module so that the module can send messages back to the server when a repo has finished deploying.

StudentRepoDeployer creates the new GitHub repo and passes the message regarding the success or failure of this process back to the StudentRepoWorker process.

defmodule StudentRepoDeployer do
  def deploy_student_repo(canonical_repo, student_repo_worker_pid) do
    case do_repo_student_deploy(canonical_repo) do
      {:ok, student_repo} ->
        StudentRepoWorker.success(student_repo_worker_pid, student_repo)
      {:error, error} ->
        StudentRepoWorker.failure(student_repo_worker_pid, error)
    end
  end
end

Our StudentRepoWorker GenServer handles this message by passing it along to the CourseWorker server (whose PID it stored in state), and then dying. Once the work of creating a student repo is done, this proces can terminate. So, we have our handle_cast functions respond with the :stop message. This tells the process to die.

# student_repo_worker.ex

def success(student_repo_worker_pid, student_repo) do
  GenServer.cast(student_repo_worker_pid, {:success, student_repo})
end

def failure(student_repo_worker_pid, error) do
  GenServer.cast(student_repo_worker_pid, {:failure, error})
end

def handle_cast({:success, student_repo}, state) do
  state[:course_worker_pid]
  |> CourseWorker.student_repo_success(student_repo, self())
  {:stop, :done, state}
end

def handle_cast({:failure, error}, state) do
  state[:course_worker_pid]
  |> CourseWorker.student_repo_failure(error, self())
  {:stop, :done, state}
end

def terminate(:done, _state), do: :ok

Our CourseWorker will receive the student repo success/failure messages from each individual StudentRepoWorker that is running. It will respond by telling the CourseState server to update appropriately.

Then, it performs an important next step. It checks the CourseState server's internal state to see if there are any student repo workers still processing. If not, then we are done deploying the course! Our CourseWorker will tell the state server to update its state to set :done to true. Then it will terminate itself.

# course_worker.ex

def student_repo_success(course_worker_pid, student_repo, student_repo_worker_pid) do
  GenServer.cast(course_worker_pid, {:student_repo_success, student_repo, student_repo_worker_pid})
end

def student_repo_failure(course_worker_pid, error, student_repo_worker_pid) do
  GenServer.cast(course_worker_pid, {:student_repo_failure, error, student_repo_worker_pid})
end

def handle_cast({:student_repo_success, student_repo, student_repo_worker_pid}, state = %{state_server_pid: state_server_pid}) do
  state_server_pid
  |> CourseState.update_success_state({:success, student_repo, student_repo_worker_pid})

  course_state = CourseState.get_state(state_server_pid)

  if Enum.any?(course_state[:processing]) do
    CourseState.done(state_server_pid)
    {:stop, :done, state}
  else
    {:noreply, state}
  end
end

def handle_cast({:student_repo_failure, error, student_repo_worker_pid}, state = %{state_server_pid: state_server_pid}) do
  state_server_pid
  |> CourseState.update_failure_state({:failure, error, student_repo_worker_pid})

  course_state = CourseState.get_state(state_server_pid)

  if Enum.any?(course_state[:processing]) do
    CourseState.done(state_server_pid)
    {:stop, :done, state}
  else
    {:noreply, state}
  end
end

def terminate(:done, _state), do: :ok

Our CourseState server knows how to respond to the "success", "failure" and "done" messages. It handles student repo success/failure messages by removing the student repo worker PID from the :processing key in state and updating the :success or :failure buckets appropriately. CourseState also knows how to expose its state via the get_state/1 function.

It responds to the "done" message by updating the :done key to true. This state server doesn't terminate itself like the other GenServers do when they are done working. We'll come back to the question of how to act on this "done" state shortly.

# course_state.ex

def get_state(state_server_pid) do
  GenServer.call(state_server_pid, :get_state)
end

def update_success_state(state_worker_pid, {:success, student_repo, student_repo_worker_pid}) do
  GenServer.cast(state_worker_pid, {:success, student_repo})
end

def update_failure_state(state_worker_pid, {:failure, error, student_repo_worker_pid}) do
  GenServer.cast(state_worker_pid, {:failure, error})
end

def done(state_worker_pid) do
  GenServer.cast(state_worker_pid, :done)
end

def handle_call(:get_state, _from, state) do
  {:reply, state}
end

def handle_cast({:success, student_repo}, state) do
  # remove the student_worker_pid from the :processing key of state
  # put the student repo under the :success key of state
  {:noreply, state}
end

def handle_cast({:success, error}, state) do
  # remove the student_worker_pid from the :processing key of state
  # put the error under the :failure key of state
  {:noreply, state}
end

def handle_cast(:done, state) do
  state = Map.put(state, :done, true})
  {:noreply, state}
end

Adding Fault Tolerance

Now that our course deployment flow is built out (and concurrent to boot), let's talk about fault tolerance. If a given StudentRepoWorker crashes, we need to tell CourseWorker to tell CourseState to move that PID to the error bucket.

We can leverage a custom GenServer terminate function to do just that. The GenServer.terminate/2 function is a callback that gets invoked automatically when the GenServer stops running.

If StudentRepoWorker receives an unexpected termination, we'll pass a message to CourseState to make the appropriate updates.

# student_repo_worker.ex

def terminate(reason, state) do
  state[:course_worker_pid]
  |> CourseWorker.student_repo_failure(reason, self())
  :ok
end

CourseWorker already knows how to handle this student_repo_failure message by passing it along to CourseState.

If the CourseWorker server crashes, however, we can't continue to process any student repo deployments. This is because each individual student repo worker would be trying to send messages to a CourseWorker PID that is not alive. In that case, we need to tell CourseState that the course deployment is done and that any student repo worker PIDs remaining in the :processing bucket should be moved to :failed.

# course_worker.ex

def terminate(reason, state) do
  state[:state_server_pid]
  |> CourseState.course_failed(reason)
  :ok
end

# course_state.ex

def course_failed(state_server_pid, error_message) do
  GenServer.cast(state_server_pid, :course_failed)
end

def handle_cast(:course_failed, state) do
  processing = state[:processing]
  failed     = state[:failed]
  state      = Map.merge(state, %{processing: [], failed: failed  <> processing, done: true})
  {:noreply, state}
end

Now, if either of our worker GenServers crash, we'll be sure to appropriately update the state server. We'll retain awareness of the state of a course deployment if that deployment crashes or errors and be able to reflect that state to the client.

Finishing a Course Deployment

We know that when we have no more PIDs in the :processing bucket in state, we mark state as "done". By this time, we will have terminated the worker GenServers. But our state server is still running, still holding on to state.

We need some code that can check if the state is "done", retrieve the state for the client, and terminate the state server.

We kick off our course deployment process by telling our CourseSupervisor to start its children. We defined the start_work/1 function such that it will return the pid of the CourseState server:

{:ok, state_server_pid} = CourseSupervisor.start_work(course_params)

Since we have the state server's PID, we can poll the server to see when the :done key is set to true:

def deploy_course(course_params) do
  {:ok, state_server_pid} = CourseSupervisor.start_work(course_params)
  course_deployment_finished?(state_server_pid)
end

def course_deployment_finished?(state_server_pid) do
  state = CourseState.get_state(state_server_pid)
  if !state[:done] do
    poll_course_state(state_server_pid)
  else
    CourseState.shutdown(state_server_pid)
    state
  end
end

We'll teach CourseState how to stop a given process:

# course_state.ex

def shutdown(state_server_pid) do
  GenServer.stop(state_server_pid)
end

If the course deployment is done, we'll return the state from the state server and terminate the server. Otherwise, we'll keep polling. Then, we can take the state we returned above and use it to update our client--via a response to a web request or some other mechanism.

What We Won

By leveraging Dynamic Supervisors, we gave our app the ability to start and stop GenServers as-needed, such as in response to receiving a request to deploy a given course to students.

In this manner, we can tell one GenServer to start a concurrent set of server processes--one for each student repo creation process. This sped up what had the potential to be a very slow, sequential set of work.

Not only did our Dynamic Supervisor/GenServer architecture allow for concurrent workflows, it provided us a way to build fault tolerance into those workflows. We separated out the work of managing the deployment of the entire course from the work of creating an individual student repo and we separated out the state tracking mechanism from both of these pieces of work. That meant that we could catch errors or crashes in a given worker process, ensure that any such errors didn't effect the processing of the other student repos, and update the separate state management system appropriately.

All in all, we created a fast and resilient system to enact a critical process for our organization.

subscribe and never miss a post!
Blog Logo

Sophie DeBenedetto
comments powered by Disqus
comments powered by Disqus
